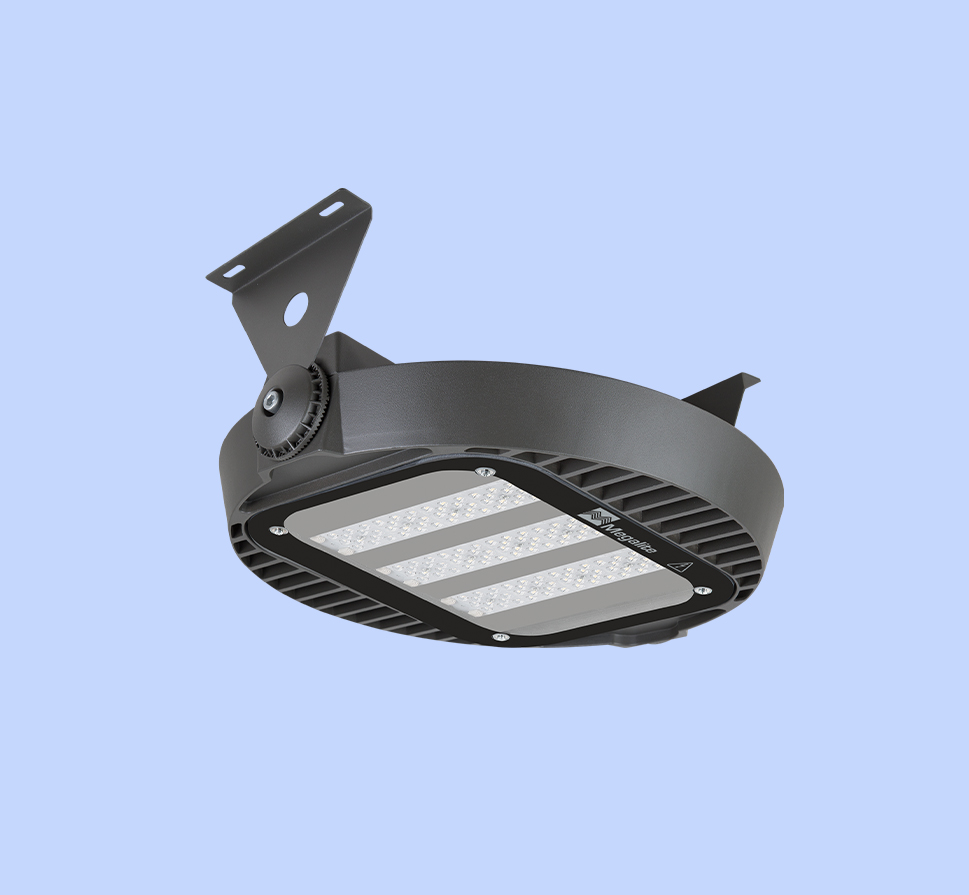

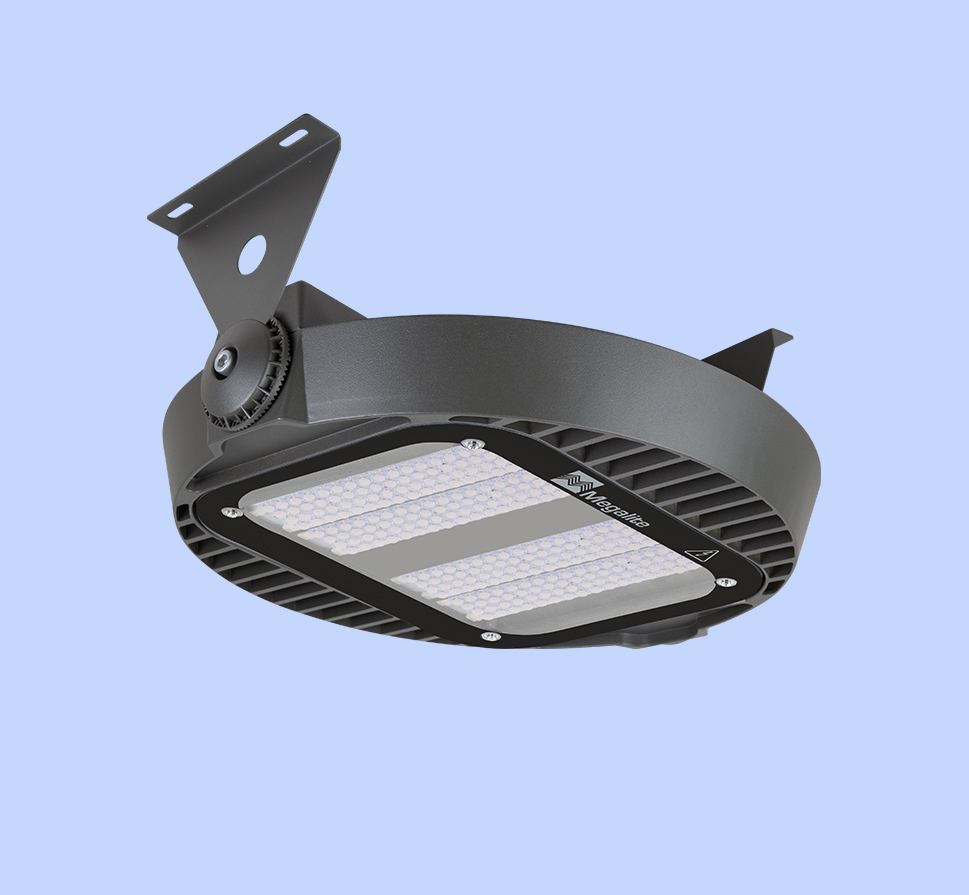

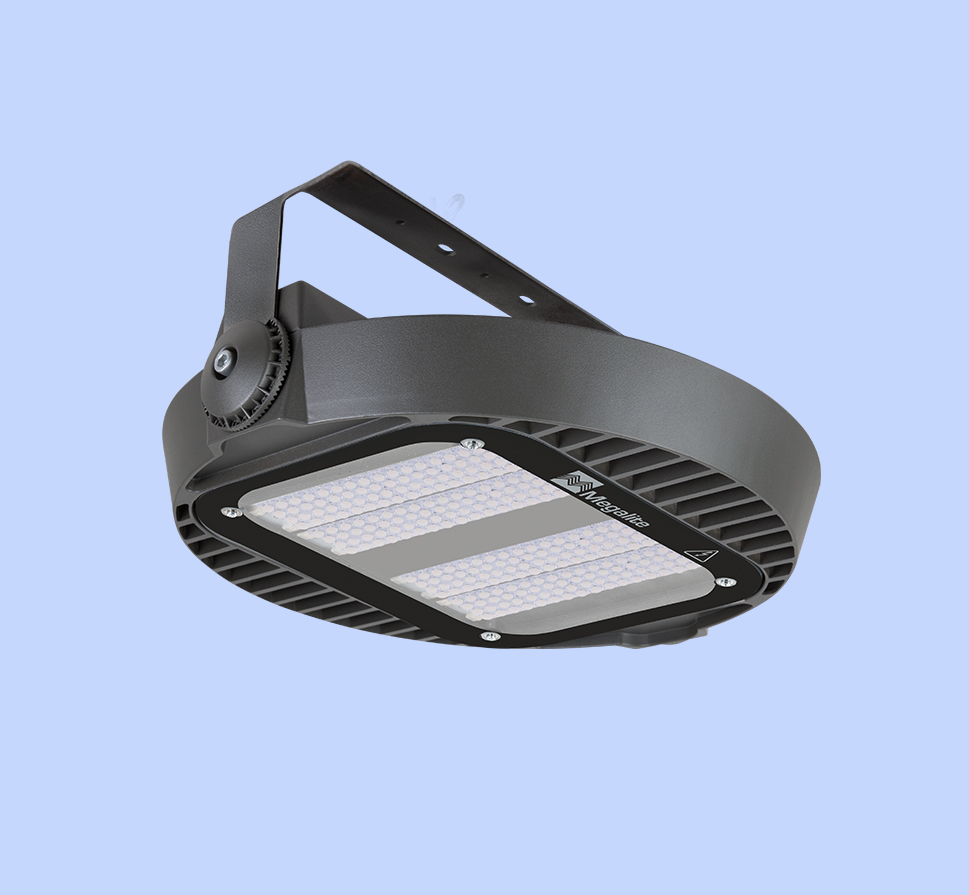

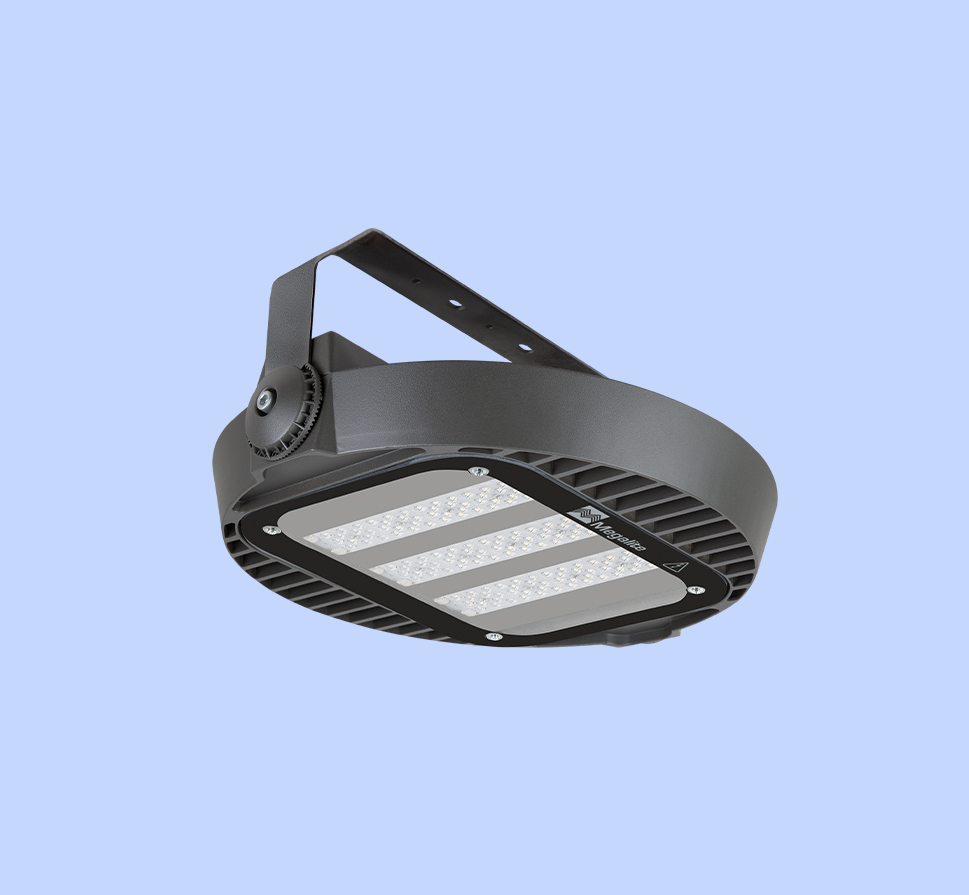

SATURN for Tunnels

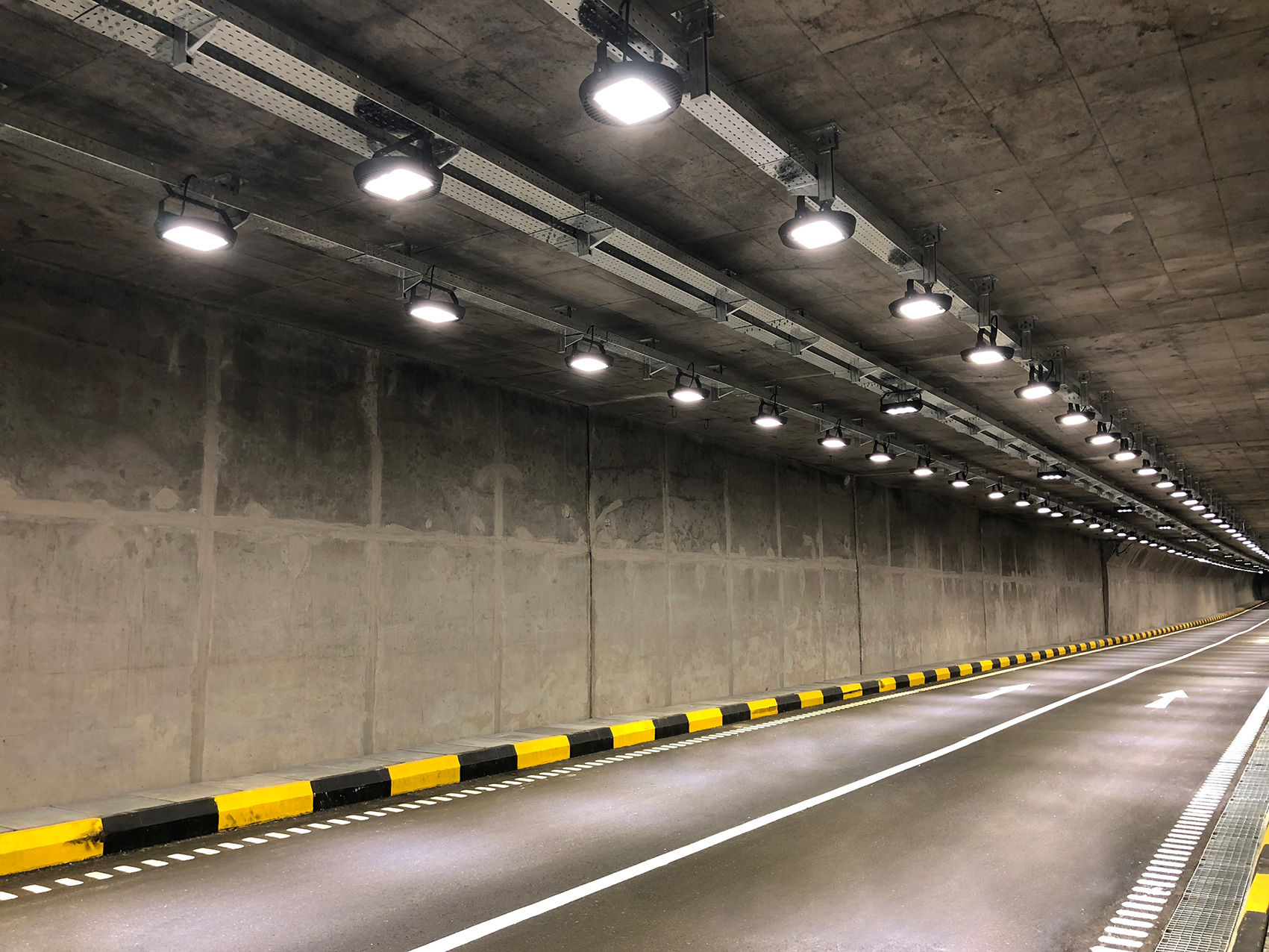

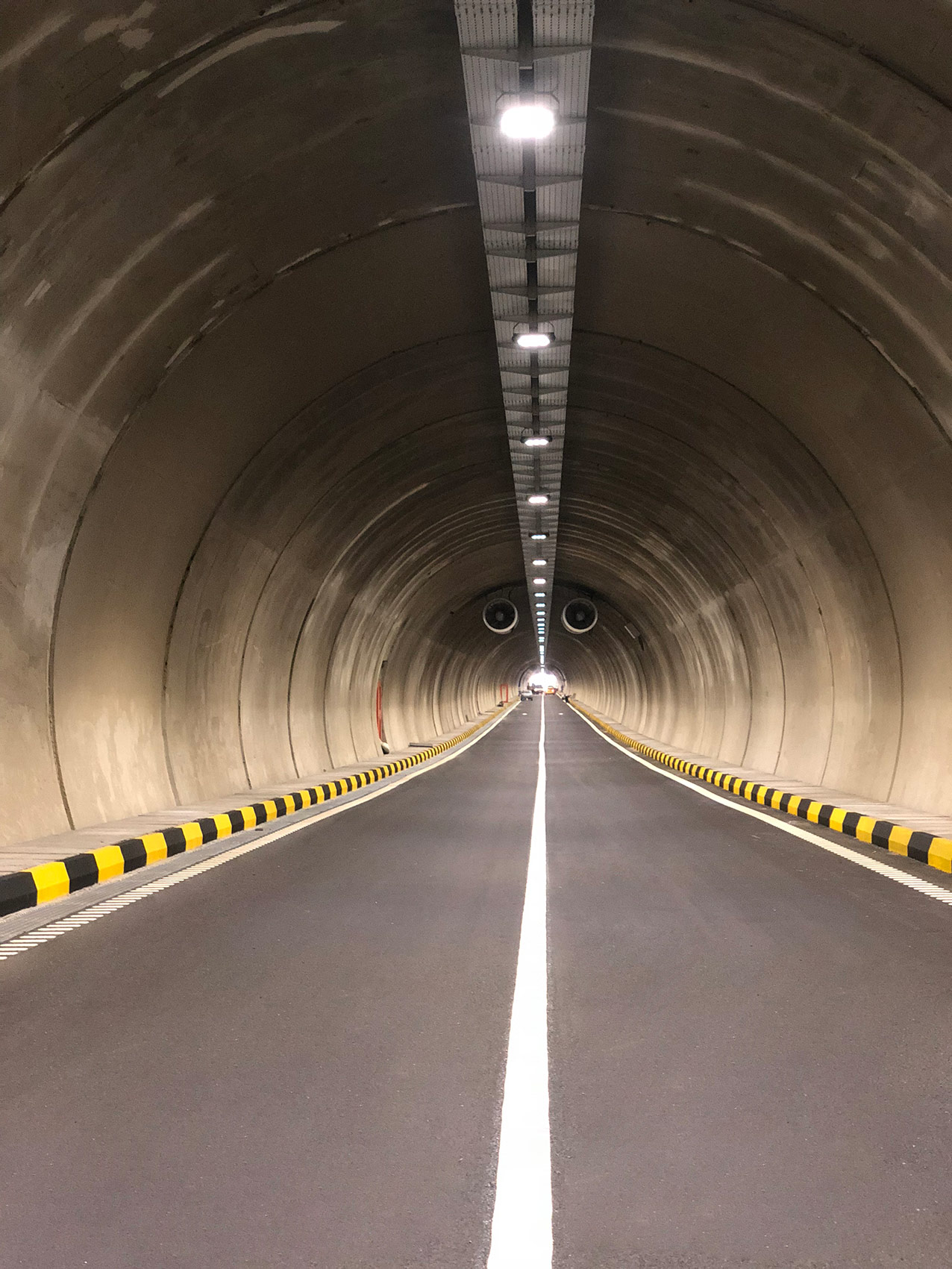

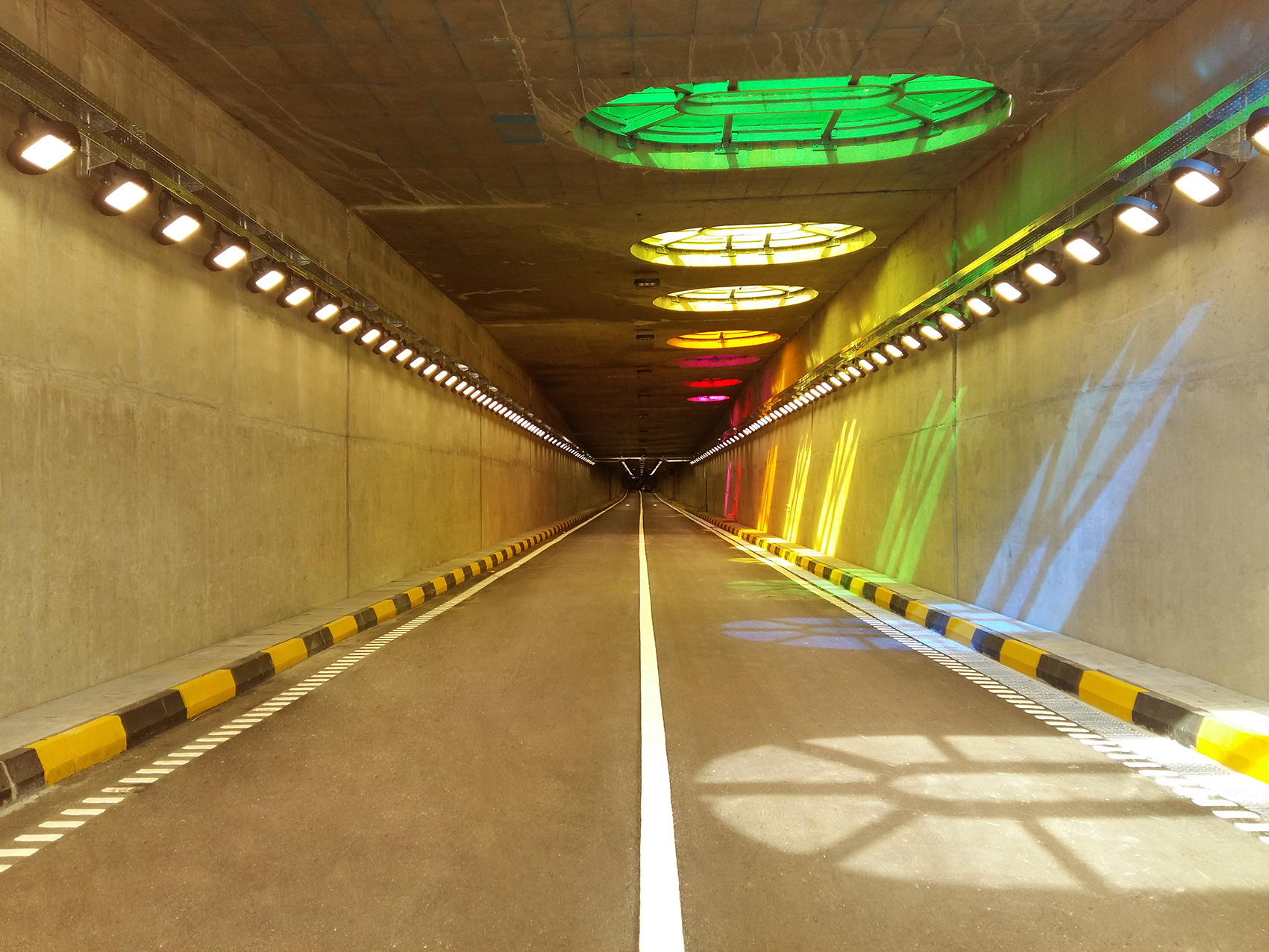

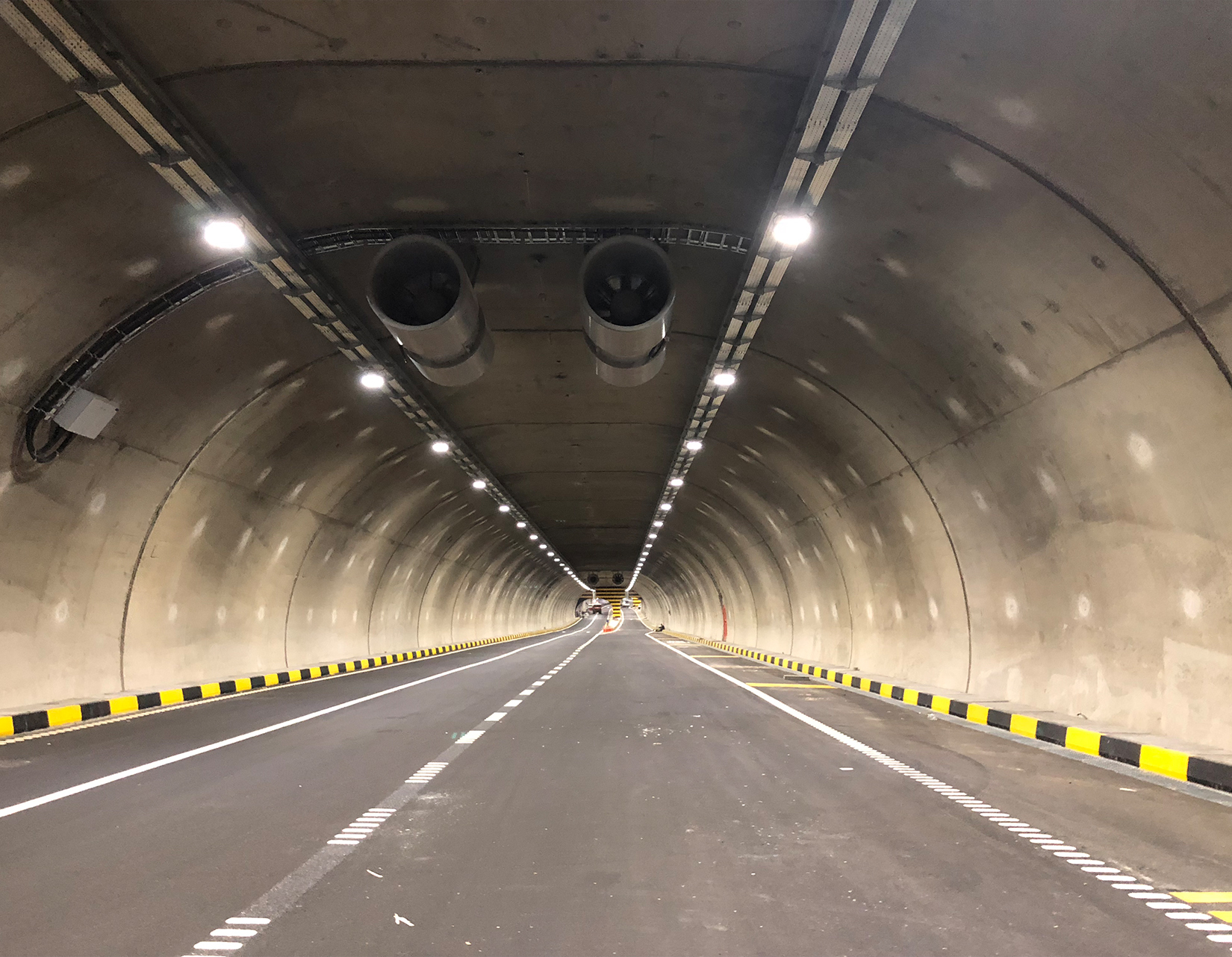

SATURN Tunnel luminaire is Megalite state of the art design suitable for tunnel lighting application. Well-controlled light distribution with appropriate choice of lenses, high pressure die-cast aluminum body, and high ingress protection (IP66) are among the highlights of this luminaire.
Dimensions(mm) | CCT (Color temperature) | Luminous Flux | Power Consumption | Body Color | Cataloge Code/product code | |
|---|---|---|---|---|---|---|
SATURN for tunnels - middle tray  | Ø515x110 | 4000K - Neutral White | 32000 | 200 | Gray | M313MTW4LED9740-SNew |
| Ø515x110 | 4000K - Neutral White | 28000 | 200 | Gray | M313MTA4LED9740-SNew | |
| Ø515x110 | 4000K - Neutral White | 36000 | 240 | Gray | M313MTW4LED10740-SNew | |
| Ø515x110 | 4000K - Neutral White | 32000 | 240 | Gray | M313MTA4LED10740-SNew | |
SATURN for tunnels - corner tray  | Ø515x110 | 4000K - Neutral White | 28000 | 200 | Gray | M313CTA4LED9740-SNew |
| Ø515x110 | 4000K - Neutral White | 32000 | 200 | Gray | M313CTW4LED9740-SNew | |
| Ø515x110 | 4000K - Neutral White | 36000 | 240 | Gray | M313CTW4LED10740-SNew | |
| Ø515x110 | 4000K - Neutral White | 32000 | 240 | Gray | M313CTA4LED10740-SNew |
