GALAXY Modular Floodlight

GALAXY modular floodlight is Megalite state of the art design suitable for lighting large open areas, sport venues and other floodlight applications on high masts. High pressure die-cast aluminum body, adjustable LED compartment, and high ingress protection (IP66) are among the highlights of this luminaire.

grid_959147145_0_header_table

	Dimensions(mm)	Light Distribution	CCT (Color temperature)	Luminous Flux	Power Consumption	Cataloge Code/product code

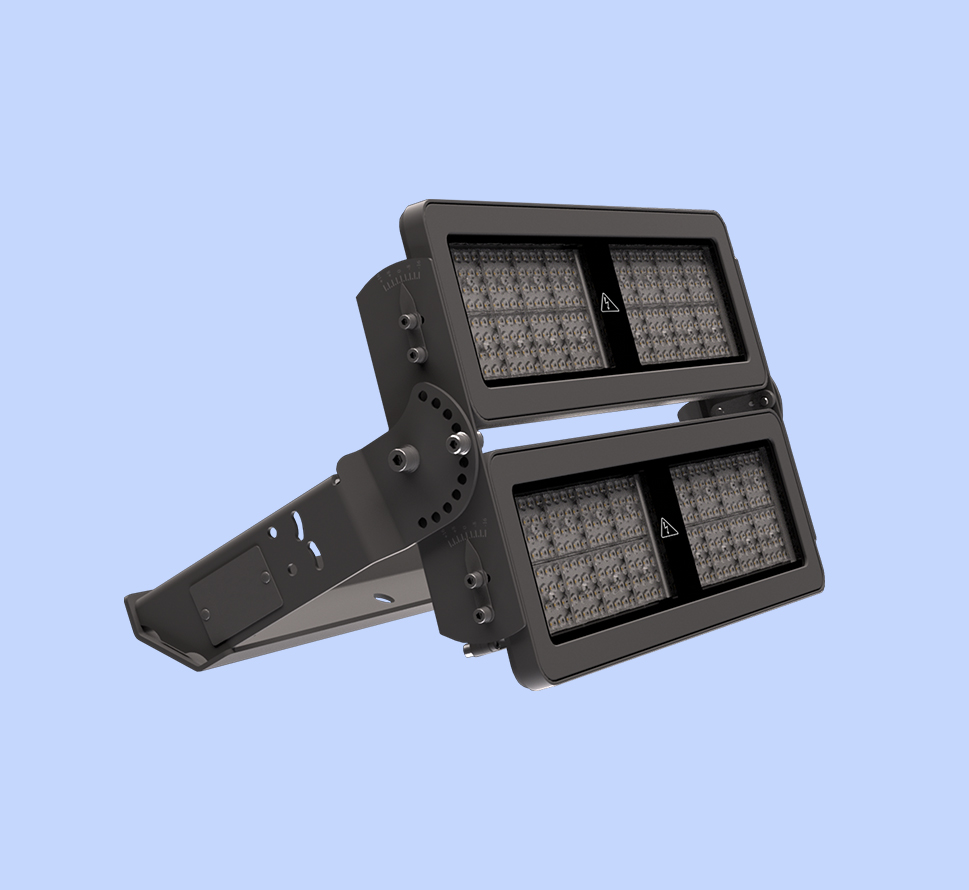

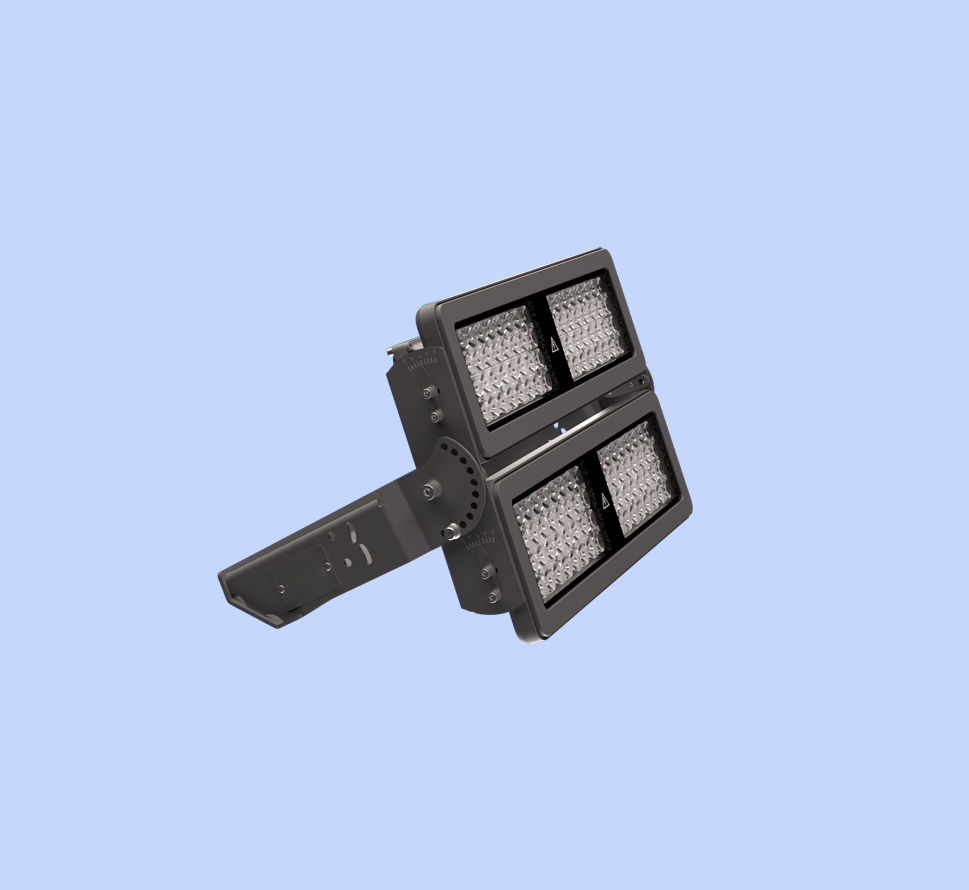

GALAXY with Two optical compartment	385x590x100	25 degrees	3000K - Warm White	56000	400	M321N2B8LED12730-SNew
	385x590x100	55 degrees	3000K - Warm White	56000	400	M321M2B8LED12730-SNew
	385x590x100	25 degrees	4000K - Neutral White	60000	400	M321N2B8LED12740-SNew
	385x590x100	55 degrees	4000K - Neutral White	60000	400	M321M2B8LED12740-SNew
	385x590x100	25 degrees	6500K - Daylight	60000	400	M321N2B8LED12765-SNew
	385x590x100	55 degrees	6500K - Daylight	60000	400	M321M2B8LED12765-SNew

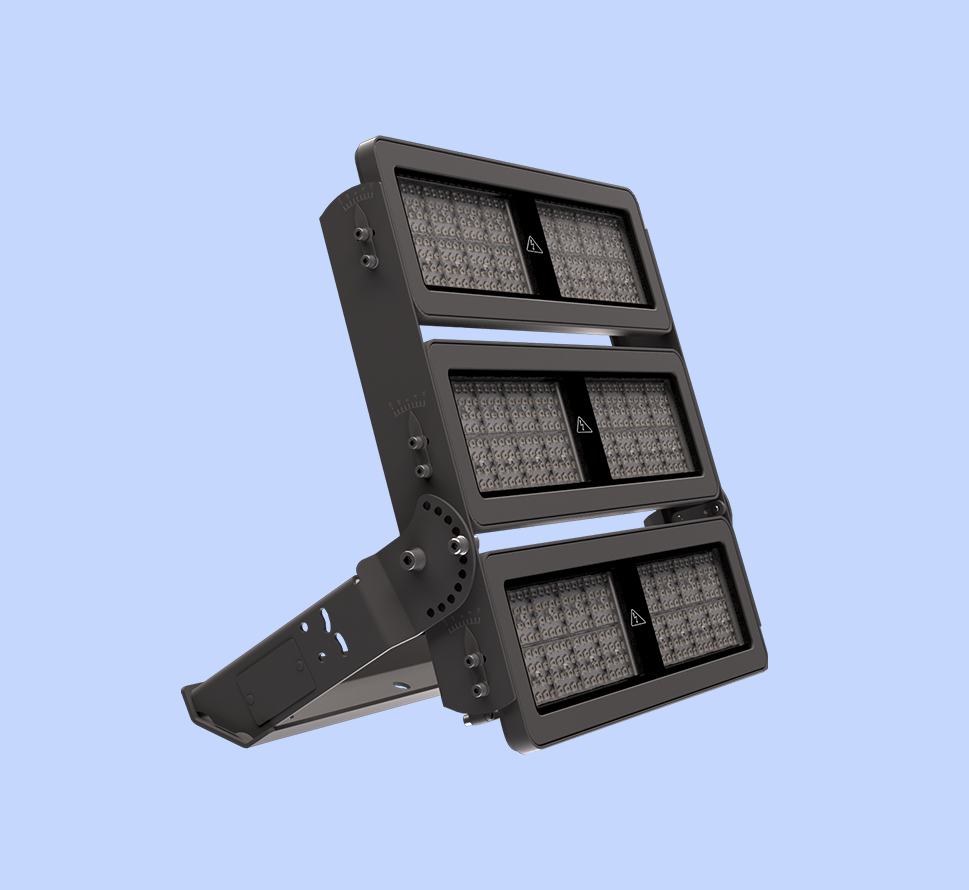

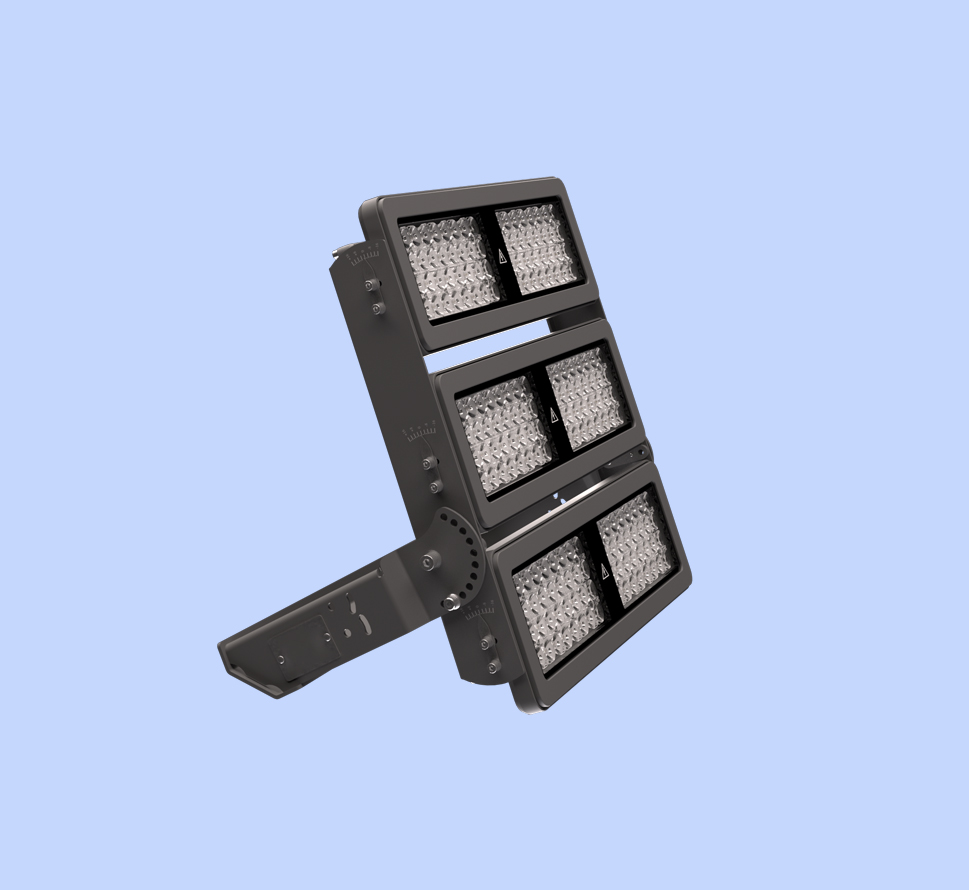

GALAXY with Three optical compartment	570x590x100	55 degrees	3000K - Warm White	84000	600	M321M3B12LED14730-SNew
	570x590x100	25 degrees	3000K - Warm White	84000	600	M321N3B12LED14730-SNew
	570x590x100	55 degrees	4000K - Neutral White	90000	600	M321M3B12LED14740-SNew
	570x590x100	25 degrees	4000K - Neutral White	90000	600	M321N3B12LED14740-SNew
	570x590x100	25 degrees	6500K - Daylight	90000	600	M321N3B12LED14765-SNew
	570x590x100	55 degrees	6500K - Daylight	90000	600	M321M3B12LED14765-SNew

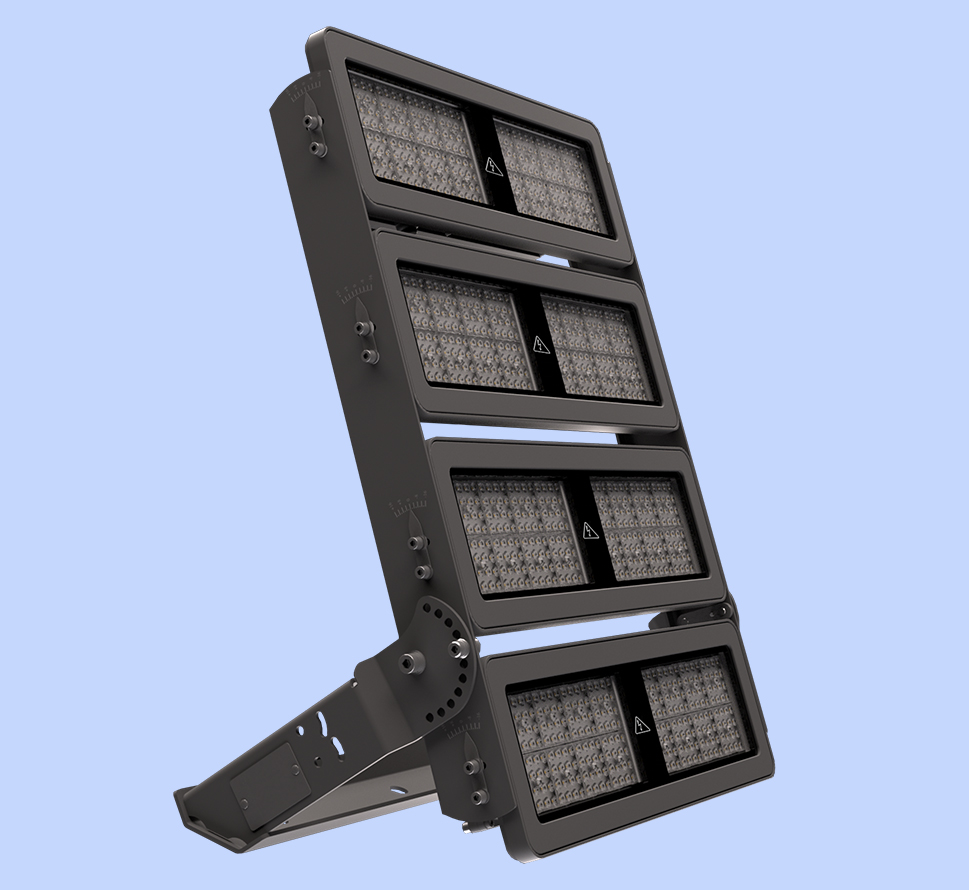

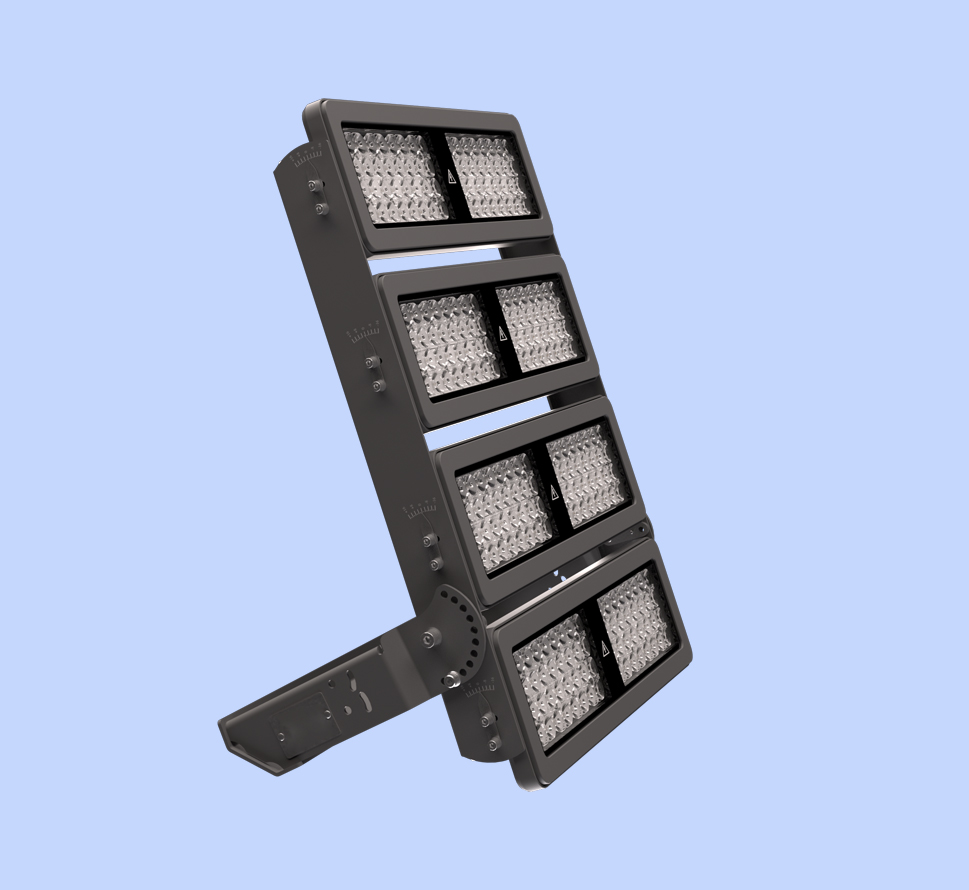

GALAXY with Four optical compartment	755x590x100	25 degrees	3000K - Warm White	112000	800	M321N4B16LED16730-SNew
	755x590x100	55 degrees	3000K - Warm White	112000	800	M321M4B16LED16730-SNew
	755x590x100	25 degrees	4000K - Neutral White	120000	800	M321N4B16LED16740-SNew
	755x590x100	55 degrees	4000K - Neutral White	120000	800	M321M4B16LED16740-SNew
	755x590x100	25 degrees	6500K - Daylight	120000	800	M321N4B16LED16765-SNew
	755x590x100	55 degrees	6500K - Daylight	120000	800	M321M4B16LED16765-SNew
