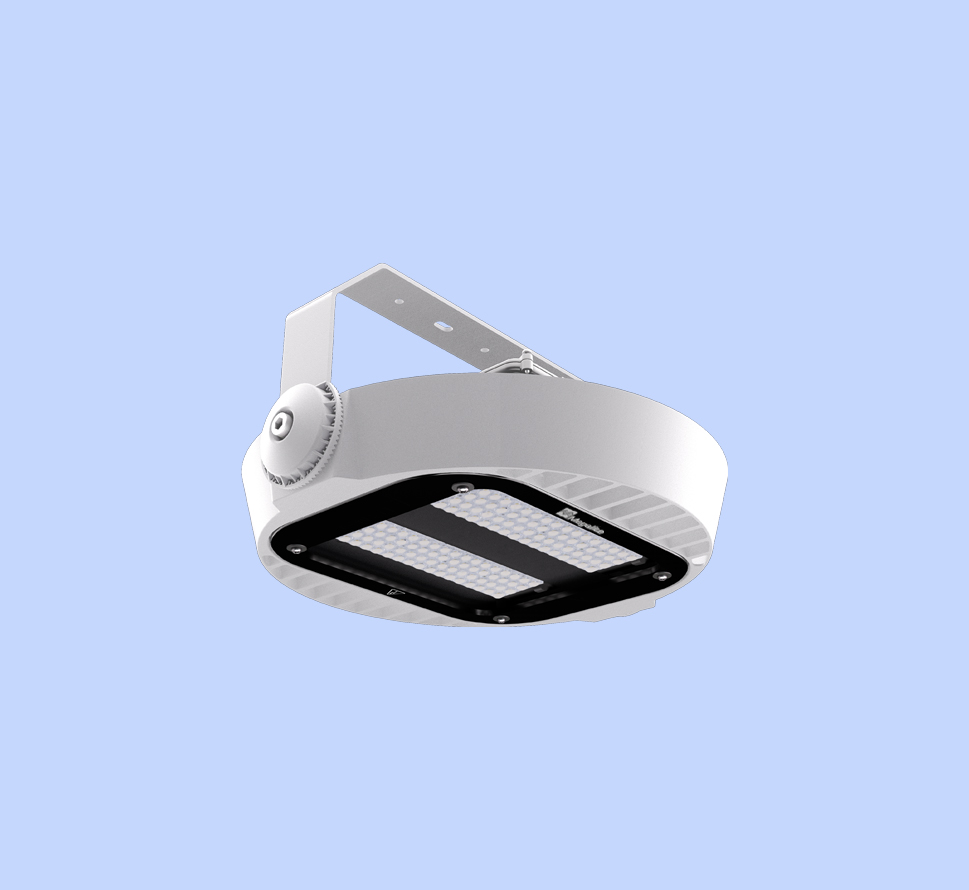

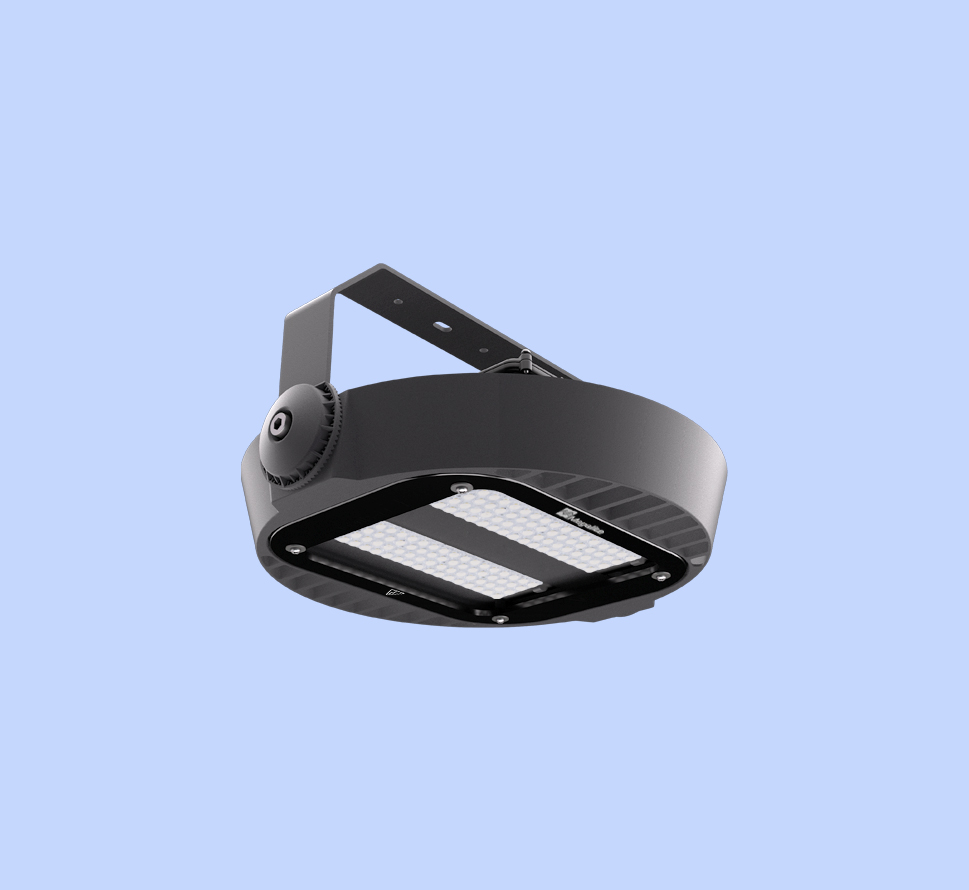

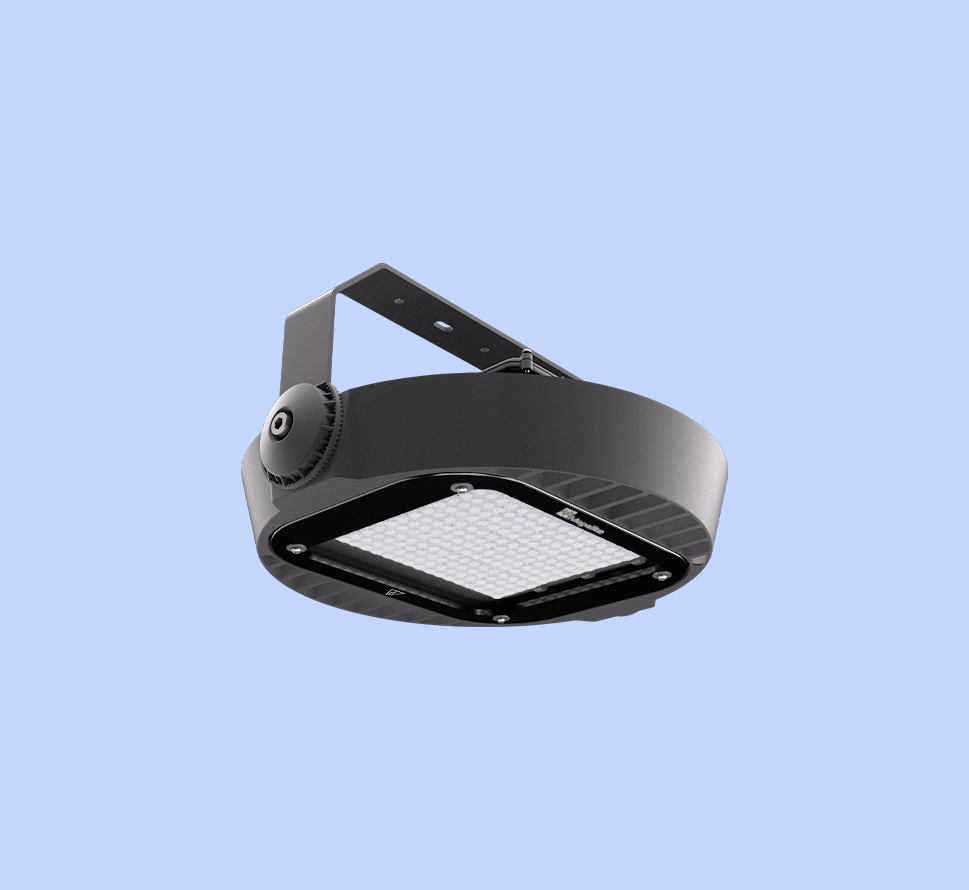

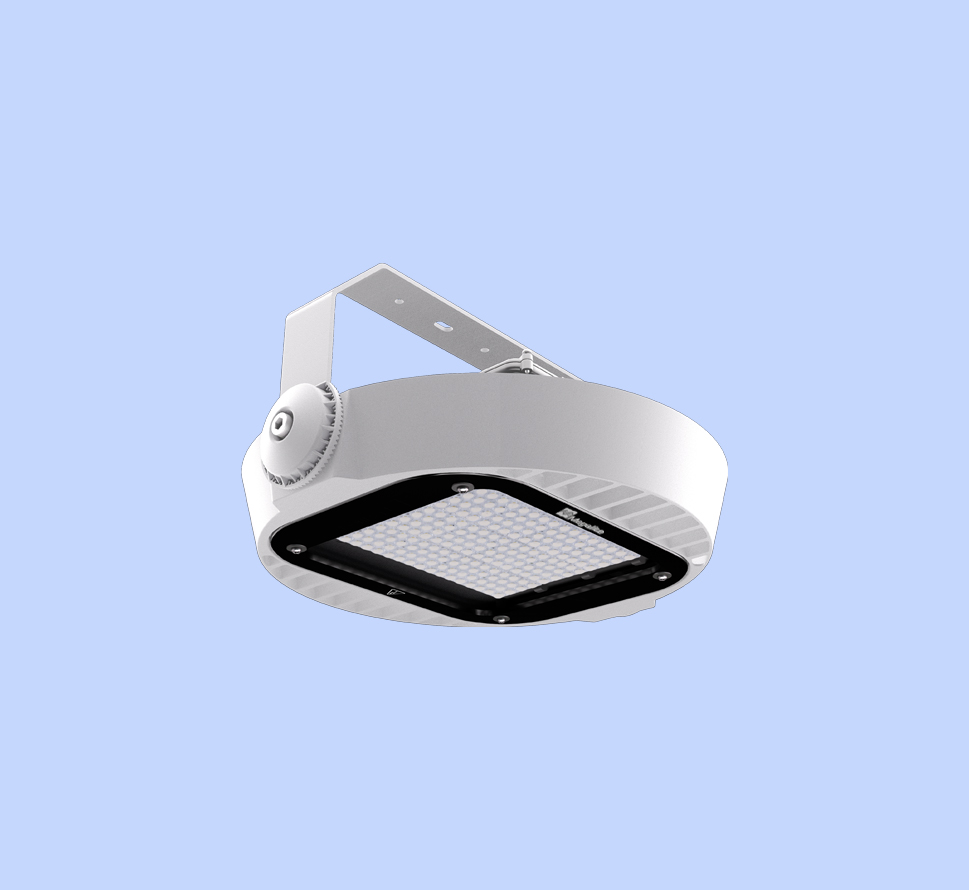

HERCULED S High/Low Bay Luminaire
HERCULED S dust & moisture proof high/low bay luminaire is Megalite state of the art design suitable for surface mount or suspending in industrial area with specially designed lenses to deliver a variety of light distribution. Sturdy body and high ingress protection (IP66) are among the highlights of this luminaire.
Dimensions(mm) | Light Distribution | CCT (Color temperature) | Luminous Flux | Power Consumption | Body Color | Cataloge Code/product code | |
|---|---|---|---|---|---|---|---|
HERCULED S with Narrow Light Distribution  | Ø380x60 | 25degrees | 4000K - Neutral White | 15000 | 100 | Gray | M312SN2LED6740-SNew |
| Ø380x60 | 25degrees | 6500K - Daylight | 15000 | 100 | Gray | M312SN2LED6765-SNew | |
| Ø380x60 | 25degrees | 4000K - Neutral White | 15000 | 100 | Milk white | M312SN2LED6740-WNew | |
| Ø380x60 | 25degrees | 6500K - Daylight | 15000 | 100 | Milk white | M312SN2LED6765-WNew | |
| Ø380x60 | 25degrees | 4000K - Neutral White | 23000 | 150 | Gray | M312SN3LED7740-SNew | |
| Ø380x60 | 25degrees | 6500K - Daylight | 23000 | 150 | Gray | M312SN3LED7765-SNew | |
| Ø380x60 | 25degrees | 4000K - Neutral White | 23000 | 150 | Milk white | M312SN3LED7740-WNew | |
| Ø380x60 | 25degrees | 6500K - Daylight | 23000 | 150 | Milk white | M312SN3LED7765-WNew | |
HERCULED S with Medium Light Distribution  | Ø380x60 | 55degrees | 4000K - Neutral White | 15000 | 100 | Gray | M312SM2LED6740-SNew |
| Ø380x60 | 55degrees | 6500K - Daylight | 15000 | 100 | Gray | M312SM2LED6765-SNew | |
| Ø380x60 | 55degrees | 4000K - Neutral White | 15000 | 100 | Milk white | M312SM2LED6740-WNew | |
| Ø380x60 | 55degrees | 6500K - Daylight | 15000 | 100 | Milk white | M312SM2LED6765-WNew | |
| Ø380x60 | 55 degrees | 4000K - Neutral White | 23000 | 150 | Gray | M312SM3LED7740-SNew | |
| Ø380x60 | 55 degrees | 6500K - Daylight | 23000 | 150 | Gray | M312SM3LED7765-SNew | |
| Ø380x60 | 55degrees | 4000K - Neutral White | 23000 | 150 | Milk white | M312SM3LED7740-WNew | |
| Ø380x60 | 55degrees | 6500K - Daylight | 23000 | 150 | Milk white | M312SM3LED7765-WNew | |
HERCULED S with Wide Light Distribution  | Ø380x60 | 90 degrees | 4000K - Neutral White | 16000 | 100 | Gray | M312SW2LED6740-SNew |
| Ø380x60 | 90 degrees | 6500K - Daylight | 16000 | 100 | Gray | M312SW2LED6765-SNew | |
| Ø380x60 | 90degrees | 4000K - Neutral White | 16000 | 100 | Milk white | M312SW2LED6740-WNew | |
| Ø380x60 | 90degrees | 6500K - Daylight | 16000 | 100 | Milk white | M312SW2LED6765-WNew | |
| Ø380x60 | 90 degrees | 4000K - Neutral White | 24000 | 150 | Gray | M312SW3LED7740-SNew | |
| Ø380x60 | 90degrees | 6500K - Daylight | 24000 | 150 | Gray | M312SW3LED7765-SNew | |
| Ø380x60 | 90degrees | 4000K - Neutral White | 24000 | 150 | Milk white | M312SW3LED7740-WNew | |
| Ø380x60 | 90degrees | 6500K - Daylight | 24000 | 150 | Milk white | M312SW3LED7765-WNew |
